MAP $172.99 | MSRP $245.00

RTR Premium upgrade for 1/10 Truck/ Monster, IP-67 waterproof, Sensored system

RTR Upgrade

What's in the box?

(1) EZRUN MAX10 G2 (140A) ESC w/ XT60 power plug
(1) EZRUN 3665 G3 Sensored Brushless Motor
(1) Supportive accessories (double side tape)

p/n	ESC	Motor	kv	Lipo Rating
38020343	Ezrun Max10 G2 140A	Ezrun 3665SD G3	2400	2-4s
38020344	Ezrun Max10 G2 140A	Ezrun 3665SD G3	3200	2-3s
38020345	Ezrun Max10 G2 140A	Ezrun 3665SD G3	4000	2-3s

Features

The EzRun Max10 G2 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of control feel and perfectly matches the EzRun 3652/3665 SD G3 motors.
Supports Turbo timing adjustment of up to 32 degrees, and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more with greater effect.
The smart start-stop technology is introduced to the Max10 G2 ESC. The frameless fan will not be enabled to reduced noise and saving power. The fan will only work when the temperature rises to a certain level.
Compared with the previous generation of the MAX10 ESC, the total capacitance of the capacitor is increased by 74% and is overheating protected. The functions improve the power delivery from the battery to the ESC to avoid it from overloading and causing capacitors to explode.
Smart freewheeling technology enables the MAX10 G2 to have higher drive efficiency than the previous generation, resulting in lower operating temperatures and a minimum temperature of approximately 25°C lower than the previous generation.
After connecting the ESC with the OTA BT module, you can view the data (throttle amount, voltage, current, temperature, speed and etc) in real time through the mobile app to know the running status; The history of the running status can also be viewed by data logging.
The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.

EZRUN 3665 SD Brushless G3 motor

Ezrun Series	3665 SD G3	3665 SD G3	3665 SD G3
KV	2400KV	3200KV	4000KV
P/n	30402604	30402607	30402608
LiPo	2-4S	2-3S	2-3S
R. (Ω)	0.00816Ω	0.00555Ω	0.00495Ω
No-load Current	5.2A	7.1A	8.2A
Motor Diameter & Length	Φ=37 / L=65.8	Φ=37 / L=65.8	Φ=37 / L=65.8
Shaft Diameter & Length	Φ=5 / L=16.5	Φ=5 / L=16.5	Φ=5 / L=16.5
Pole	4	4	4
Weight (g)	304.5g	304.4g	297.2g

+++ Important notes +++
"Minimum 70C suggested, lower C rating may be okay, however, it will not provide the intended experience. Matching Power Plugs must be used. The surface area of your plugs must be "larger" than the wires installed or you will very likely have problems. TRX, "T Plug", EC plugs, and "Deans" are not suggested for today's setups."

Learn more >

Programming devices (purchase separately):

OTA Programmer
LCD Program Box

Manual download

Ezrun Max10 G2 ESC

Ezrun 3652SL G3brushless motor

1/10 - 1/12

LED Program Card

EZRUN MAX10 G2 Combo (140A ESC + 3665 G3 Motor)

EZRUN 3665 SD G3 Motor

EZRUN 3652 SD G3 Motor

QUICRUN 10BL120 Sensored G2 COMBO

QUICRUN WP 10BL120 G2 COMBO (Sensorless)

QUICRUN 10BL120 Sensored ESC -G2 (2-3S)

QUICRUN 10BL60 SENSORED G2 ESC

QUICRUN 10BL60 SENSORED G2 COMBO (2S)

XERUN XR14 ESC

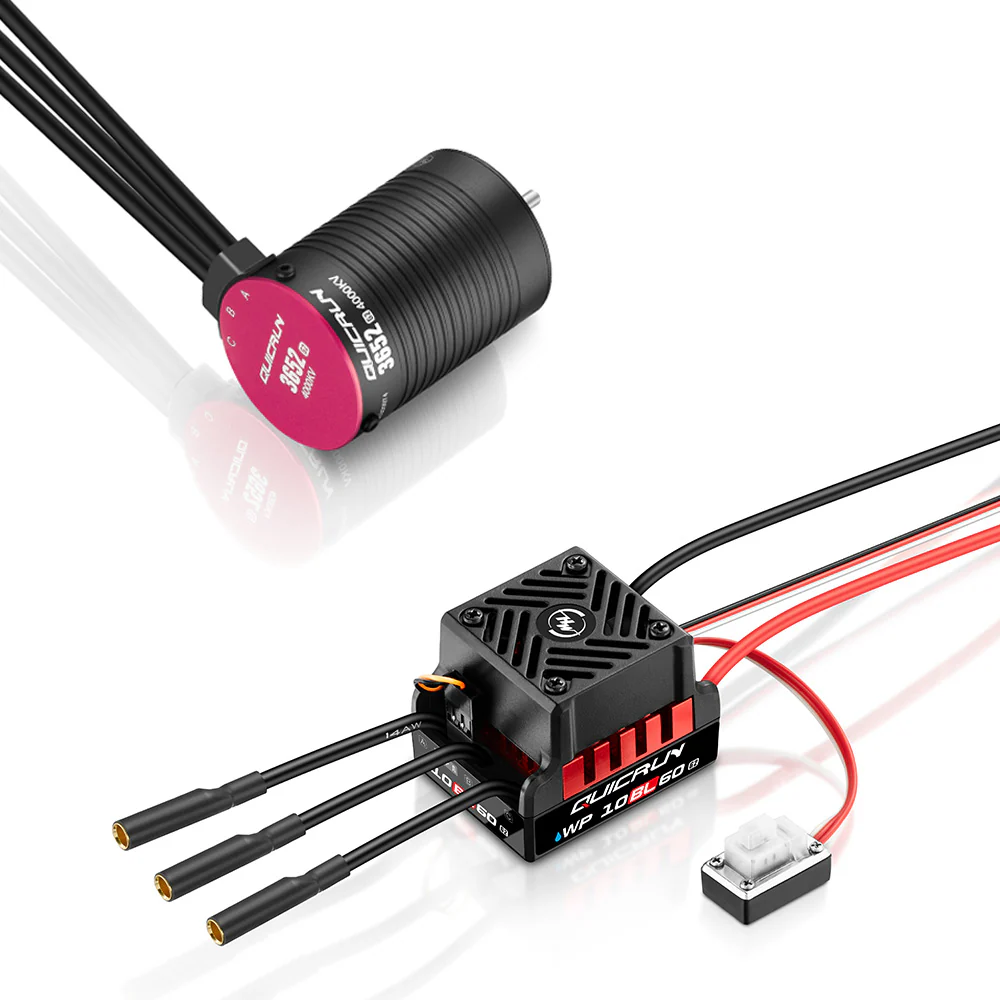

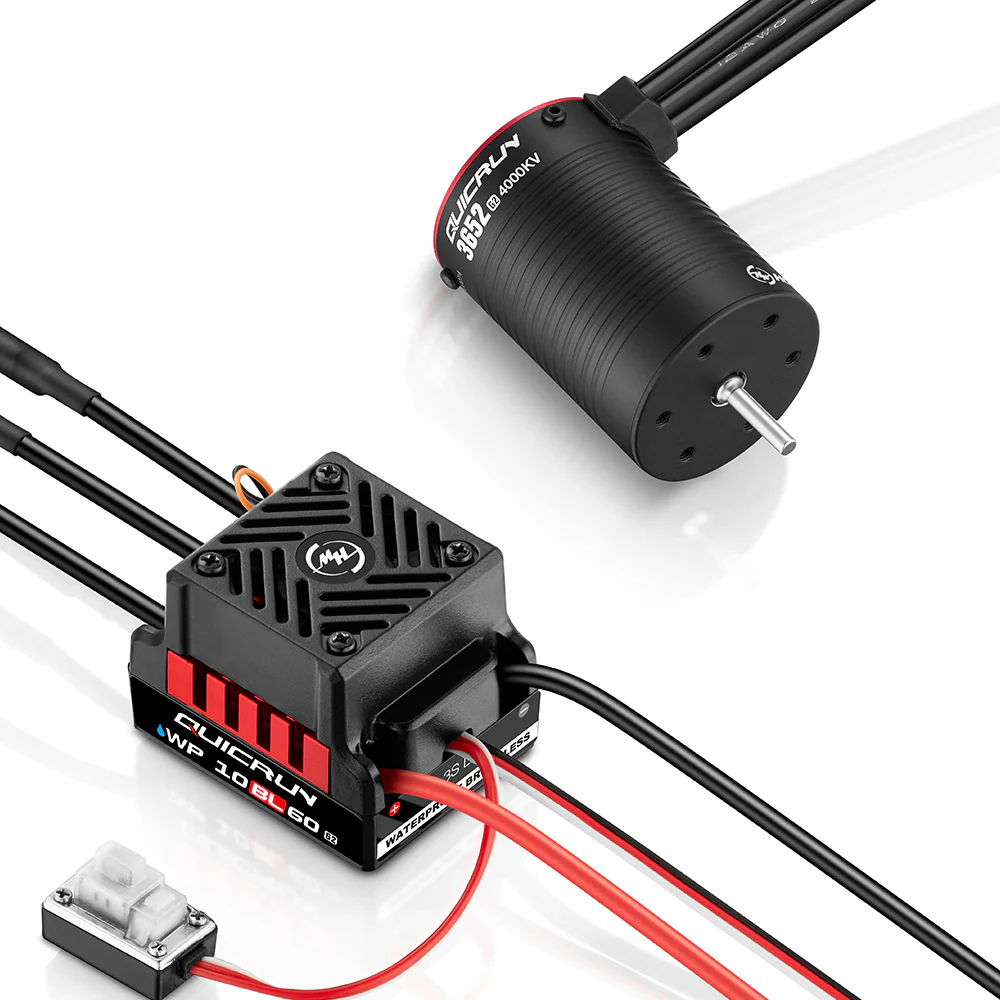

QUICRUN 10BL60 WP G2 COMBO

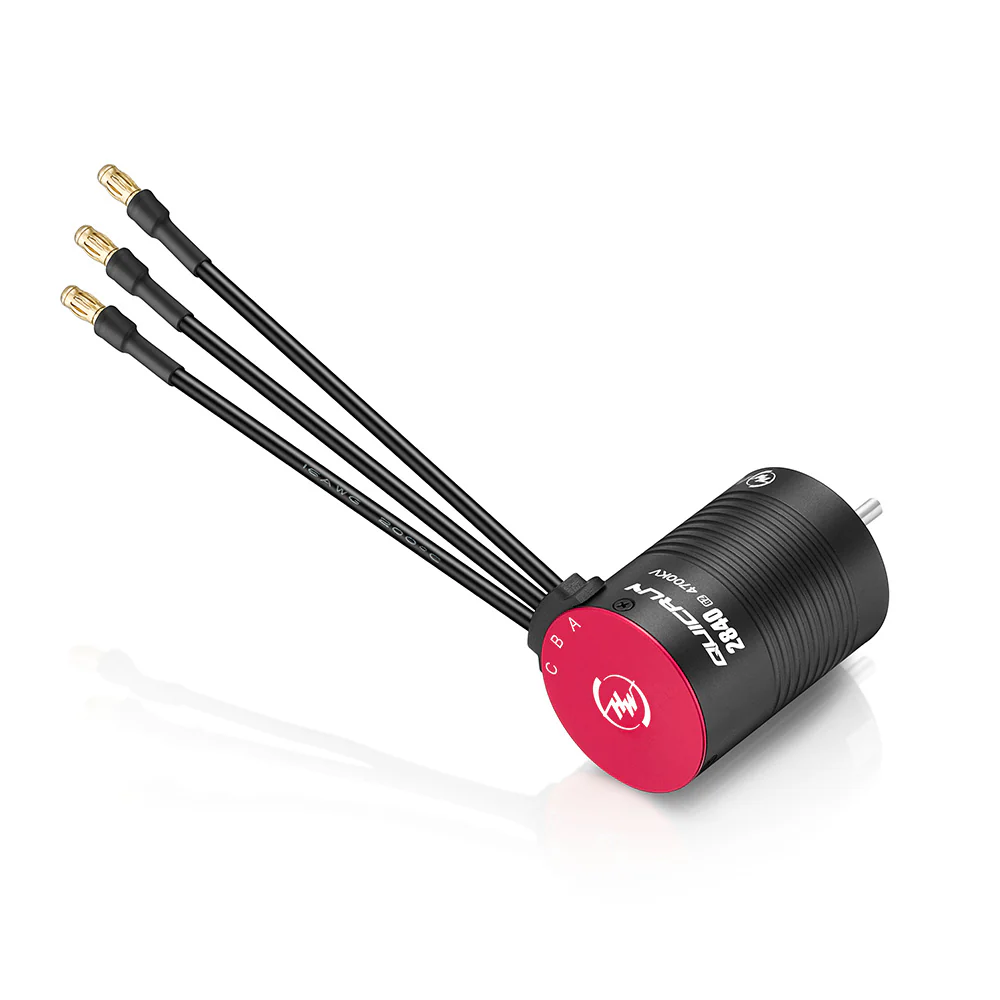

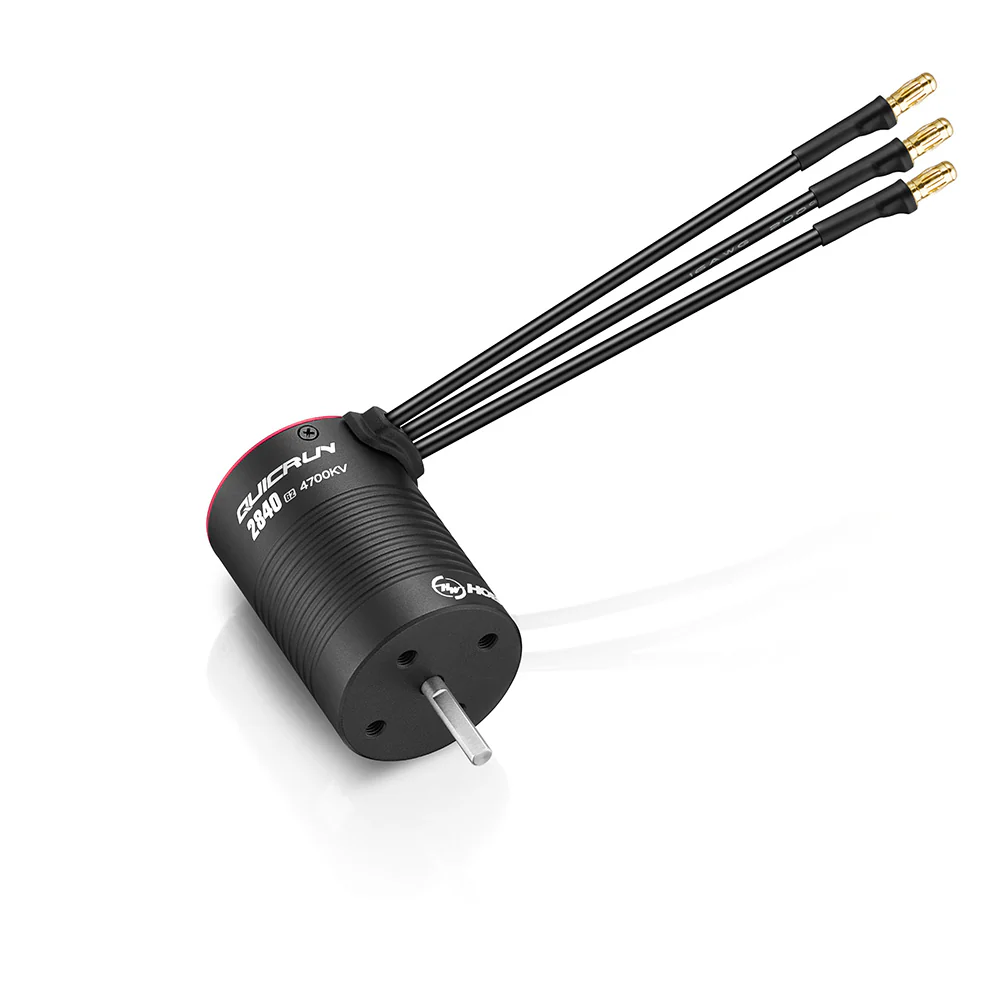

QUICRUN 2840 Series Motors
