MAP $9.69 | MSRP $15.00

ESC designed for multirotors
Reliable, High responsive brushless system

Special core program for multi-rotor controllers greatly improves throttle response.
Specially optimized software for excellent compatibility with disc-type motors.
All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive.
The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.

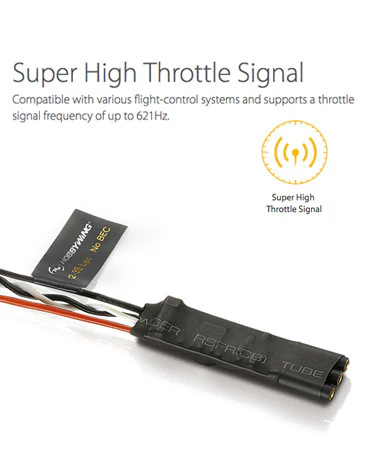

Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
MOSFET with extra-low resistance brings high performance and great current endurance.

Model / SKU	XRotor-10A mini 3S / 30901008
Cont./Peak Current	10A /15A
Multicopter Applicable	250 Class Quadcopter
Input	2-3S LiPo
Bullet connector size	2.0mm Gold Connectors (Female)
BEC Type / BEC Output	NO
Programming item	Timing (High/Intermediate),
Size / Weight	44.2x12.2x9.2mm, 9.2mm at capacitor 7g (0.23oz)

Official Warranty Available through HOBBYWINGDirect.com & FS authorized dealer network in North America
For more information: http://www.HobbywingDirect.com/pages/authorized-dealer
** All ESCs purchased from Hong Kong retailers do not confirm CE / North America regulation - deems non-warranty

Optional devices

Manual Download or Online troubleshooting

Clearance

XRotor 10A Mini ESC
