What's in the box?

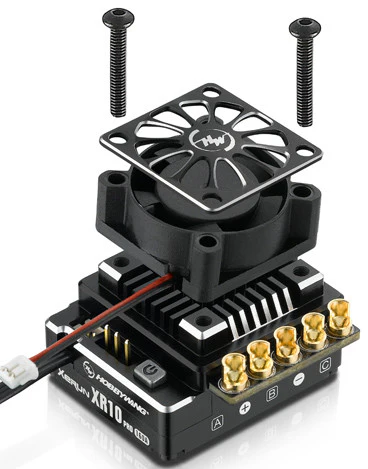

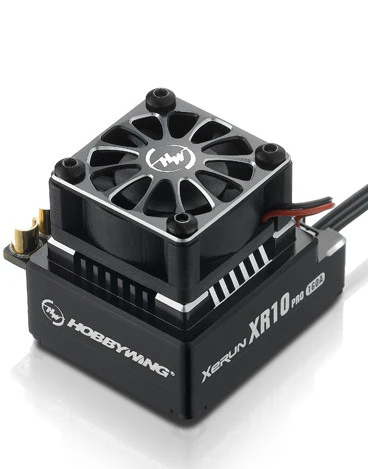

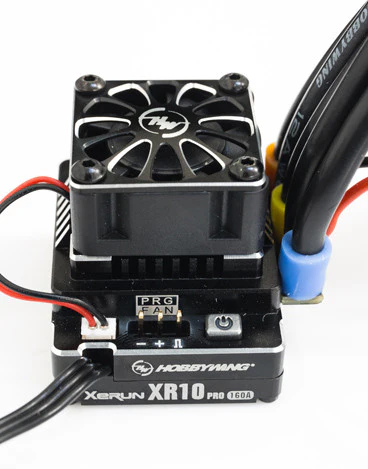

• XR10 PRO ESC w/ a cooling fan
• (2) Input wires 12AWG-200mm
• (3) Output wires 12AWG-200mm
• (2) x cooling fan (comes with one back-up fan)
• Dual capacitors
• Decals
• Bonus parts: heat tubes, double tape, nylon cable zap traps
• User's manual

Newer model available >

Bottonline

• Works with 4 pole brushless motor, a full sensor mode when paired with HOBBYWING motor
• 10 different programmable profiles available through LCD program box or OTA Module, or Tunalyzer
• Fully adjustable brake and throttle functions
• LiPo Low Voltage Cut off
• ESC thermal overheat protection
• Motor thermal overheat protection
• Remote On/Off feature
• "1-degree" Precision throttle and brake control
• Coast Control (patent pending*)
• Drive Frequency Control
• Brake Frequency Control
• Boost Timing control and options for Modified racing
• Turbo Timing control and option for Modified racing
• Ultra-Low-resistance circuitry
• ROAR-approved software including Zero-timing
• Smallest footprint and height possible with current technology to fit within even more tighter space of a vehicle.

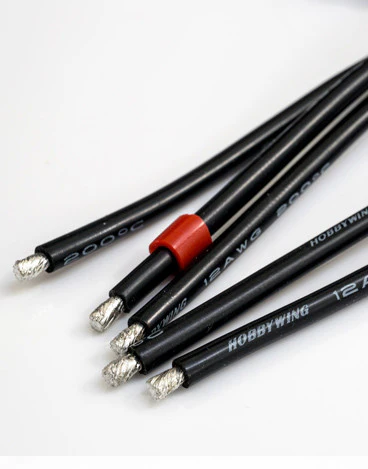

• 12-gauge high-quality power wires
• Powerful external capacitor board
• HOBBYWING Over-The-Air Firmware updateable through HOBBYWING programmer: Tunlayzer or OTA (purchased separately)
• The most advanced brushless ESC has proven by World Champ.competitions worldwide.

Specifications

ID	XR10 PRO-L
p/n	30112600
Type	Scale: 1/10th Brushless Sensored ESC
Cont./Peak Current	160A/1200A
Power input	2-3S LiPo/4-9 Cell NiMH
BEC output	6V/7.4V Switchable, Continuous Current of 4A (Switch-mode)
Wire input	Black-12AWG-200mm*2
Wire output	Black-12AWG-200mm*3
Size	37.5x30.9x31.6mm (w/Fan & Fan Shroud)
Weight	95g (w/ Wires)
Cooling Fan Voltage Range	25.0x25.0x10.0mm Powered by the stable BEC voltage of 6V/7.2V

• ROAR approved

• 1/10th Touring Car & Buggy & Drift Car & F1; 1/8th,1/10th Rock Crawler

• KV Rating/T Count: 2S LiPo/6S NiMH: (Touring Car) T≥3.5T, (Buggy) T≥4.5T.


 User's Manual download

 Download ESC SETUP SHEET (PDF)

World leading Racers's ESC setup sheet

• Bruno Coelho's XR10 Pro ESC x Xerun V10 Motor (4.5T)
• Nicolas

 << learn more Xerun ESC series
